The product name:CO2 Assemble Line Laser Marking Machine(Flying Type)

This laser machine can be equipped on the production line. Iadopts the advanced laser galvanometer marking technology and imported Sealed-off RF CO2 laser generator. Currently, it is of the most mature laser technology.

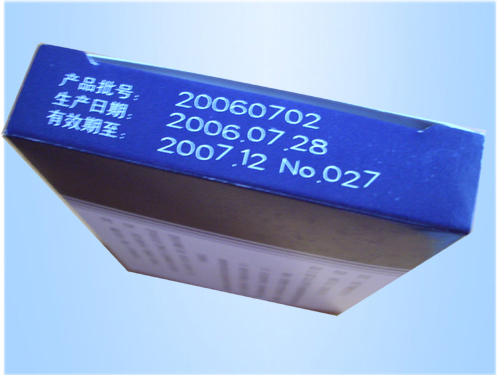

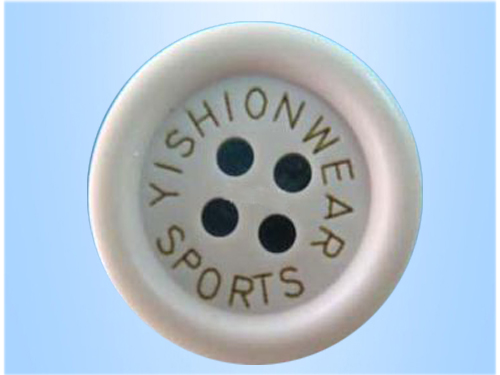

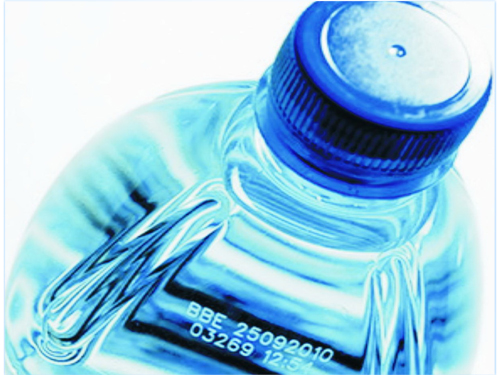

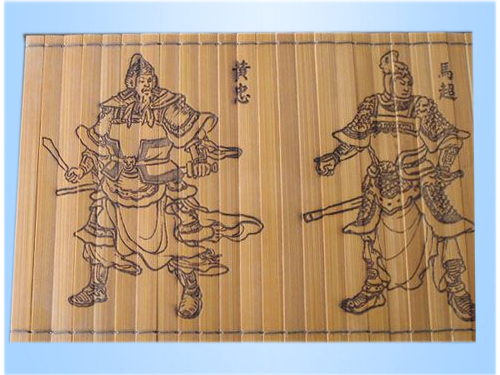

The sample

Warm prompt:

欢迎您寄样到我公司,我们将免费制作The sample,并为您选择最好的机器;
我们也长年承接打标(雕刻)、切割加工,可以为贵公司代工。

Product features

CO2 Assemble Line Laser Marking Machine(Flying Type)特点:

It can be equipped on the assemble line to achieve the auto automatic marking.

Delicate marking effect: adopts the imported Sealed-off RF CO2 laser generator, it is of high stability, high Repetition Precision and positioning precision

High marking speed: it can improve the efficiency highly.

Long lifetimethe working lifetime of the laser generator is more than 40000 houres.

No pollution: it doesn`t produce the harmful materials.

Easy to operate: friendly operating interface.


Application

CO2 Assemble Line Laser Marking Machine(Flying Type)适应范围:



 Most non-metal materials and products.

Cloth, clothing accessories, buttons, leather tiles, paperboard, papers, leather, PU leather, fabric cutting,

Food packaging, beverage packaging, pharmaceutical packaging, building ceramics

Craft gifts, rubber products, electronic components, shell plate, stone material, wood products, glass and other non-metallic materials.

Trademark embroidering, plastics, bamboo & wooden products, woods, organic glass, acrylic, jade, shell, ox horn, animal sebum

Animal sebum, double-color sheet, ABS board, PVC board, fiber and composite materials.



Parameter


              Name & Model

Item

            COLaser Marking Machine

GL-CMA10

GL-CMA30

LaserPower

10W

30W

Modulating Frequency

1KHZ--50KHZ

Marking Range

70mm×70mm 110mm×110mm 175mm×175mm

Max. Marking Speed

7800mm/s

Min Line Width

0.01mm

Laser Generator Lifetime

Over 40000 Hours

Repetition Precision

±0.0015

Power Supply

220V 50HZ 10A

Cooling way

Air

Power of the Whole

 Equipment

1KW

1.5KW

working conditions

temperature13℃~29, humidity5%75%, free of dust and well ventilated
