The efficiency of photoelectric conversion is high, long working lifetime, reliable. Suitable for ultra fine marking, such as LCD(Liquid Crystal Display), chips, ceramics, mobile shells.
GL-GM3/PM5 Green Light / Purple Light laser marking machine特点：
Ø Hight precision and tiny light sopt suitable for high-end precise applications.
Ø A wide range of applications suitabe for most metals and nonmetallics.
Ø Electro-optical conversion rate is higher than 45%.
Ø End-pump semiconductor lasers, Long service life, stable performance and maintenance-free.
Ø Deft design brings good protection for operator.
Ø Powerful software can realize text symbols, graphics, images, bar code, automatic incremental qr code, serial number, and the automatic choreography and modification.
Ø TTF fonts available
Ø CCD auto-tracking available

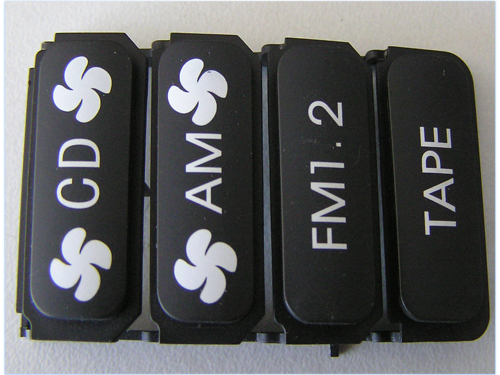

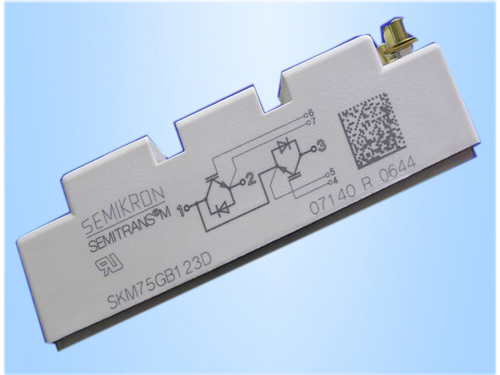

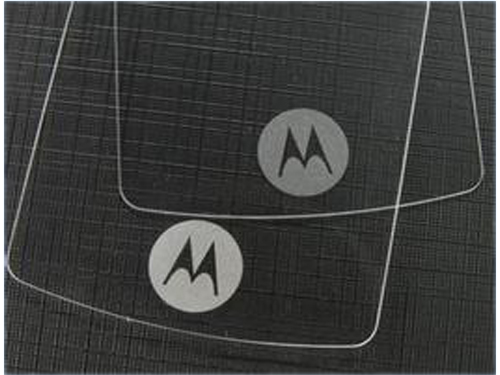

GL-GM3/PM5 Green Light / Purple Light laser marking machine适应范围： l Multiple metals (Stainless steel, cooper alloy etc). l Various nonmetallics (Glass, stone, ceramics, electroplating buttons, gold-plated device). l Optical device(Car glass, LCD screen, LED screen) l Ceramic punching l PCB
Name & Model Item | Purple Light /Green Light laser marking machine | |
GL-GM3 ( Purple Light ) | GL-PM5 ( Green Light ) | |
Laser Power | 3W | 5W |
Laser Wavelength | 355nm | 532nm |
Modulating Frequency | 20KHZ--100KHZ | |
Marking Range | 50mm×50mm ；70mm×70mm | |
Min. Line Width | 0.01mm | |
Min Character | 0.2mm | |
Repetition Precision | ±0.003 | |
Power Supply | 220V 50HZ 10A | |
Cooling Way | Force-air cooling | |
Machine Power | ≤1.5KW | |
working conditions | temperature：13℃～29℃, humidity：5%～75%, free of dust and well ventilated | |
