The handheld dot peen pneumatic marking machine is just right for the large parts. It is of small volume, clear marking, high speed and easy operation.
GL-FMP1130/1590 Portable Pneumatic Marking Machine特点:
Ø Pneumatic marking machine is automatically incremented and the value optional.
Ø The software can be auto updated with auto adjustment and trace.
Ø As the marking location changes, the marking needle can move to the new location.
Ø Input methods using manual input, made by different contents of different type of print documents.
Ø This machine with graphics editor print function, the user can use AUTOCAD editing some simple graphics
Ø Many characters for optional, as more than 200 types English characters.
Ø It can mark different characters same time with the rotary angles.
Ø There is external routine interface in the software. Through the SQL script, it can connect the external database.
Ø Automatically marking function after start without human intervention.
Besides ,we also have fiber laser marking machine ,co2 RF laser marking machine ,co2 laser engraving machine etc

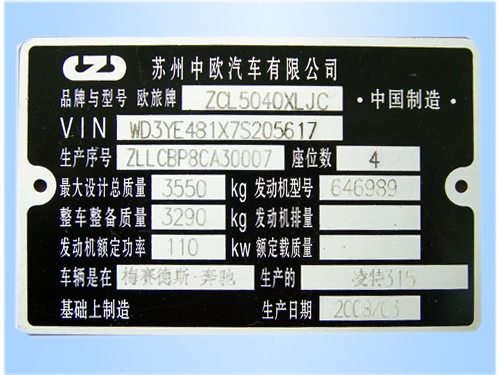

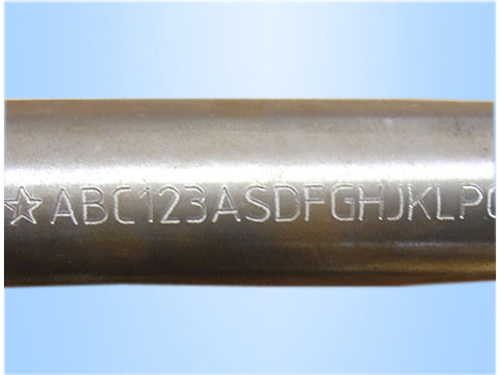

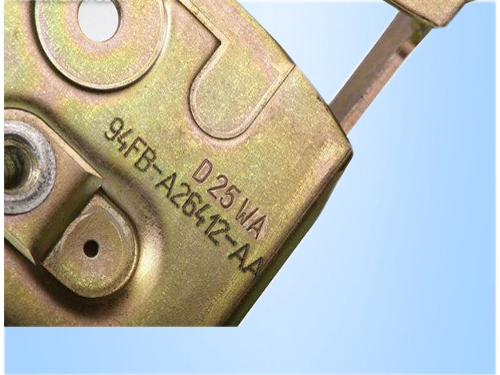

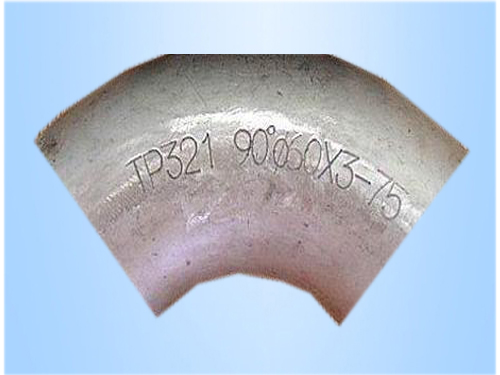

GL-FMP1130/1590 Portable Pneumatic Marking Machine适应范围: Pneumatic Dot Peen Marking Machine mainly used for marking logos, characters, serials numbers and VIN codes on bodywork of motorcycles, nameplates, connecting rods, engines, mechanical parts, machine tools, metal pipe, gear, pump, valve, fastening pieces, cylinder and various hardware, and It's applicable for the fields of automobile motorcycle parts, mechanism, petroleum, aeronautical and space,electric apparatus, steel, metal, non-metal and hard plastic materials.
Name & Model
Item | Portable Pneumatic Marking Machine | |
GL-FMP1130 | GL-FMP1590 | |
Marking Ranage | 110mm×30mm | 150mm×90mm |
Marking Speed | 5—100 character/min | |
0.1—1mm | ||
Marking Contents | Numbers, letters, characters, common characters, all kinds of graphics. | |
Impacting Frequency | 200--400HZ | |
Power Supply | 0.3~08Mpa | |
Air Supply | 220V 50HZ | |
The Whole Power of Machine | ≤300W |
