It can process many materials, the cutted edge is smooth, no rags, polishing-free, no noise, no dust.And it is of high processing speed, high precision, less waste, high efficiency. It is the best one you can choose.
GL-9060/1390 CO2 Laser Cutting Machine -特点：
The GL-9060/1390 is a medium size laser engraver and cutter. The machine has a cutting area of 900mm x 600mm
/1300mm x 900mm and can be used in a wide variety of non metalliclaser engraving and cutting applications.
The machine has a range of laser power options depending on the application required.
This model also incorporates a pass through table so that larger sheets can be processed in sections.

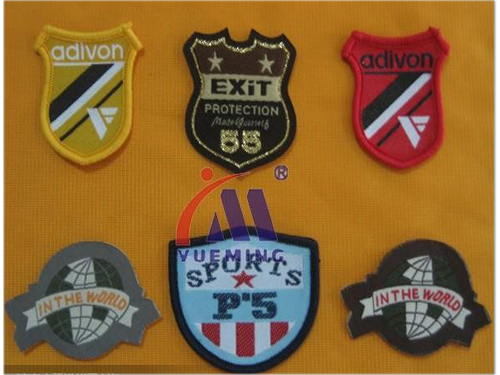

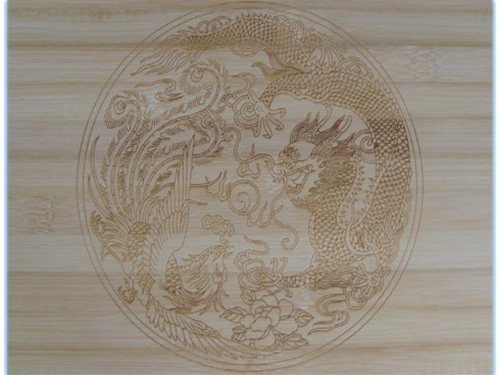

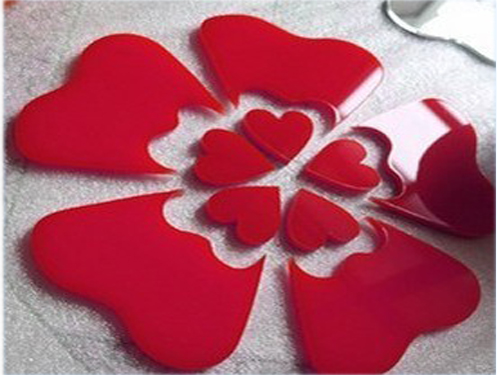

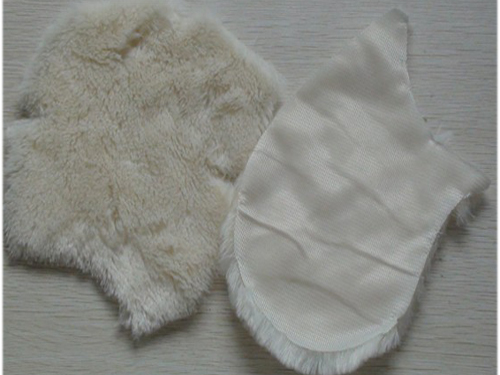

GL-9060/1390 CO2 Laser Cutting Machine -适应范围： This Laser engraving cutting machine is capable of engraving and or cutting many materials including marble, ply wood, melamine, acrylic, painted material, color board and much more. This machine incorporates a motor adjustable table, the table can be raised or lowered so that larger parts can be engraved if necessary.
Name & Model
Item | CO2 Laser Engraving Cutting Machine | |||
GL-CC9060 | GL-CC1290 | GL-CC1390 | GL-CC1490 | |
Engraving Range | 400mm ×300mm | 1200mm ×900mm | 1300mm ×900mm | 1400mm ×900mm |
Laser Power | 60W80W/100W/150W | |||
Type of Laser | CO2封离式玻璃管激光器 | |||
Cooling way | 循环水冷 | |||
Engraving Scanning Speed | 0-70000mm/min ； 0-27562in/min | |||
Cutting Speed | 0-40000mm/min ； 0-1575in/min | |||
Laser Output Control | 1～100% 软件设定 | |||
Smallest Character Engraving | 汉字：2.0mm×2.0mm; 英文：1.0mm×1.0mm | |||
Highest Scanning Precision | 2500DPI | |||
Positioning Precision | ≤±0.01 | |||
Power Supply | 220V 50HZ | |||
Supported Graphic Format | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las, 支持AutoCAD,CoreDraw直接输出 | |||
Color Separation | 有 Yes | |||
